Non-Return Valves: How to Stop Backflow Contaminating Your Water

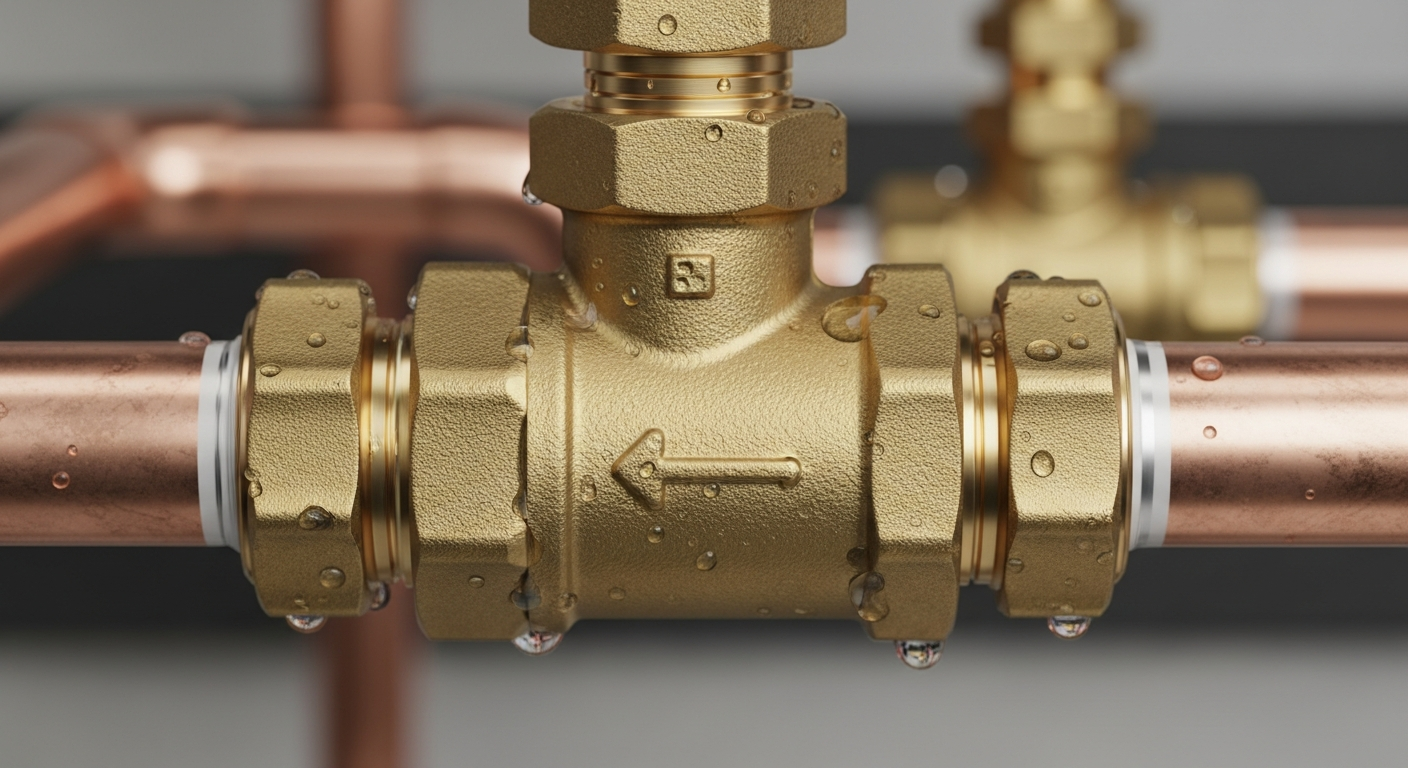

Pipe Assassin Plumbing non-return valve — brass check valve fitted inline on a copper water pipe to prevent backflow

The water that comes out of your kitchen tap is regulated to a very high standard. The water sitting in your garden hose, your washing machine, or your central-heating circuit is not. A non-return valve makes sure the second never contaminates the first.

How Does Backflow Actually Happen?

Two routes: back-pressure (downstream pressure rises above supply pressure) and back-siphonage (supply pressure drops, creating suction). Both can suck non-potable water backwards into the drinking-water supply if there is no mechanical barrier in the way.

The classic UK example: a hosepipe left submerged in a paddling pool. The mains gets shut off for repair work down the road. As the pressure drops, water gets sucked from the pool, back up the hose, into the kitchen tap — and potentially into the public main.

What the Regulations Require

The Water Supply (Water Fittings) Regulations 1999 (and the equivalent Scottish Byelaws) require backflow protection appropriate to the fluid category at each outlet:

Category 1-2: drinking water and water that's only aesthetically different — minimal protection
Category 3: water representing a slight health hazard (heating systems, washing machines) — single-check valve typically required
Category 4: significant health hazard — double-check or air gap required
Category 5: serious health hazard (sewage contact, agricultural use) — only an unobstructed air gap accepted

Common Places NRVs Are Missing

Outside taps fitted before the 2000 regulation change — many still have no single-check valve
DIY washing-machine installs where the flexible hose was connected straight to a stopcock with no check valve
Boiler filling loops left permanently connected
Water-softener bypasses
Garden irrigation systems teed off the rising main

Ninja Tip

If you've had an outside tap for more than five years and you can't remember a plumber ever fitting an NRV at the connection, assume there isn't one. £95 fitted is cheap insurance against a £5,000 boil-notice incident.

How a Plumber Fits an NRV

Isolate the supply, cut into the pipe, fit a WRAS-approved single or double check valve in the correct orientation (arrow with the flow), pressure test, and refit. Most installations take under an hour.

Pipe Assassin — 24/7 Emergency Plumbers

07956 645 527

Rapid 24/7 response. G3 certified. Insured to £5m.

Need NRVs across multiple outlets? See our full service list and pricing.

Frequently Asked Questions

What is a non-return valve in plumbing?

A non-return valve — also called a check valve or NRV — allows water to flow in one direction only. It prevents back-siphonage from a downstream outlet contaminating the upstream supply, including the public mains.

Are non-return valves legally required in the UK?

Yes, in specific scenarios defined by the Water Supply (Water Fittings) Regulations 1999. Any outlet that could allow non-potable water to back-siphon into the supply — outside taps, washing machine connections, expansion vessels, certain shower types — needs the correct category of backflow protection.

Where should non-return valves be fitted in a UK home?

The most common required locations are: outside taps (single-check), washing-machine and dishwasher inlets (most have integral devices), unvented hot-water expansion vessels, water-softener bypasses, and supply to boilers with sealed systems. WRAS publishes the full schedule.

What's the difference between a single-check and a double-check valve?

A single-check valve protects against fluid category 2 risks (slightly altered drinking water — e.g. an outside tap connected to a hose). A double-check valve protects against category 3 (substances of medium hazard — e.g. heating systems, garden hoses with attached spray bottles). The Water Regs dictate which is required where.

How much does it cost to fit a non-return valve?

Pipe Assassin fits a single-check valve from £55 inclusive of parts on accessible pipework. Double-check assemblies from £75. Reduced-pressure-zone (RPZ) devices for category 4 commercial applications are quoted per site.

Do non-return valves wear out?

Yes — limescale, debris and rubber-seat fatigue all degrade check valves over time. They're not lifetime fit-and-forget. Water Regs require periodic verifiable testing for RPZ devices in commercial applications; for domestic single- and double-check valves, replacement at 5-10 years is sensible practice.
